ภาพรวม

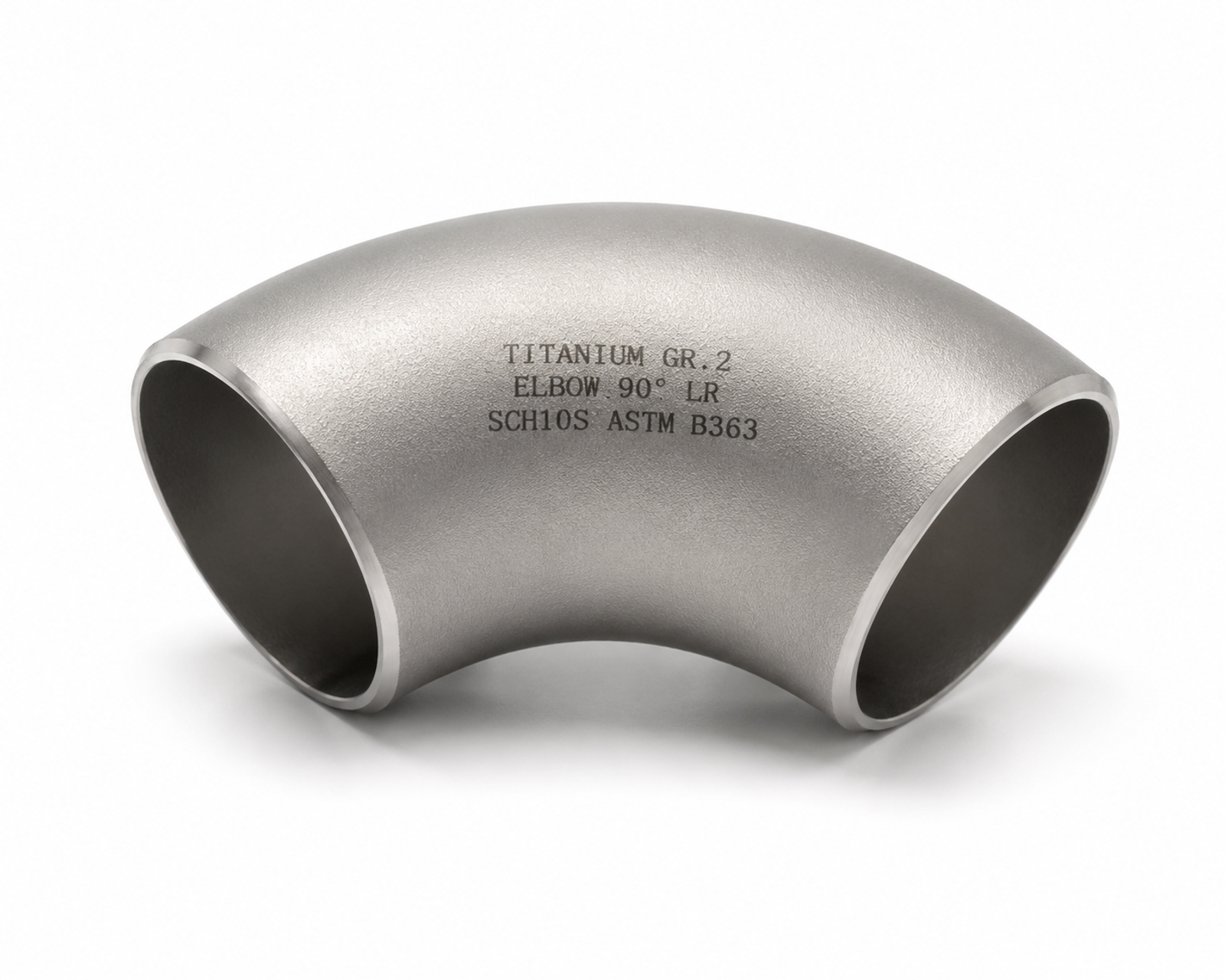

Titanium Grade 2 elbows are pipe fittings used to change the direction of titanium piping systems. They are manufactured from commercially pure titanium (Grade 2), offering the same exceptional corrosion resistance as Ti Gr.2 pipe — particularly immunity to seawater, chloride solutions, and oxidizing acids — while providing the flexibility to route piping around obstacles and connect equipment at various angles.
คำอธิบาย (อังกฤษ)
Titanium Grade 2 elbows are pipe fittings used to change the direction of titanium piping systems. They are manufactured from commercially pure titanium (Grade 2), offering the same exceptional corrosion resistance as Ti Gr.2 pipe — particularly immunity to seawater, chloride solutions, and oxidizing acids — while providing the flexibility to route piping around obstacles and connect equipment at various angles.
ช่วงขนาด
- NPS Range: 1/2" (DN15) – 24" (DN600)
- Pipe OD: 21.3 mm – 610 mm
- Wall Thickness: Schedule 5S – Schedule 80S (or custom)
- Pressure Class: Class 150 – 2500 (by wall schedule)
- Bend Angles Available: 1°, 5°, 15°, 22.5°, 30°, 45°, 60°, 90°, 180°
- Custom Bends: Available on special order (e.g., 30°, 60° offsets)
ข้อกำหนดเกรด
| ระบบ | ค่า |
|---|---|
| 🇺🇸 UNS | R50400 |
| 🇺🇸 ASTM | Grade 2 (ASTM B363 WP-Gr.2, B381 F Gr.2) |
| 🇺🇸 ASME | SB363 WP-Gr.2 |
| EN / DIN | Grade 2 / 3.7035 |
| 🇯🇵 JIS | TP340H (Class 2) |
| 🇨🇳 GB | TA2 (GB/T 27684) |
การใช้งาน
- Chemical Processing
- Desalination
- Power Generation
- Oil & Gas Offshore
- Marine
- Pulp & Paper
- Pharmaceutical
- Food & Beverage
