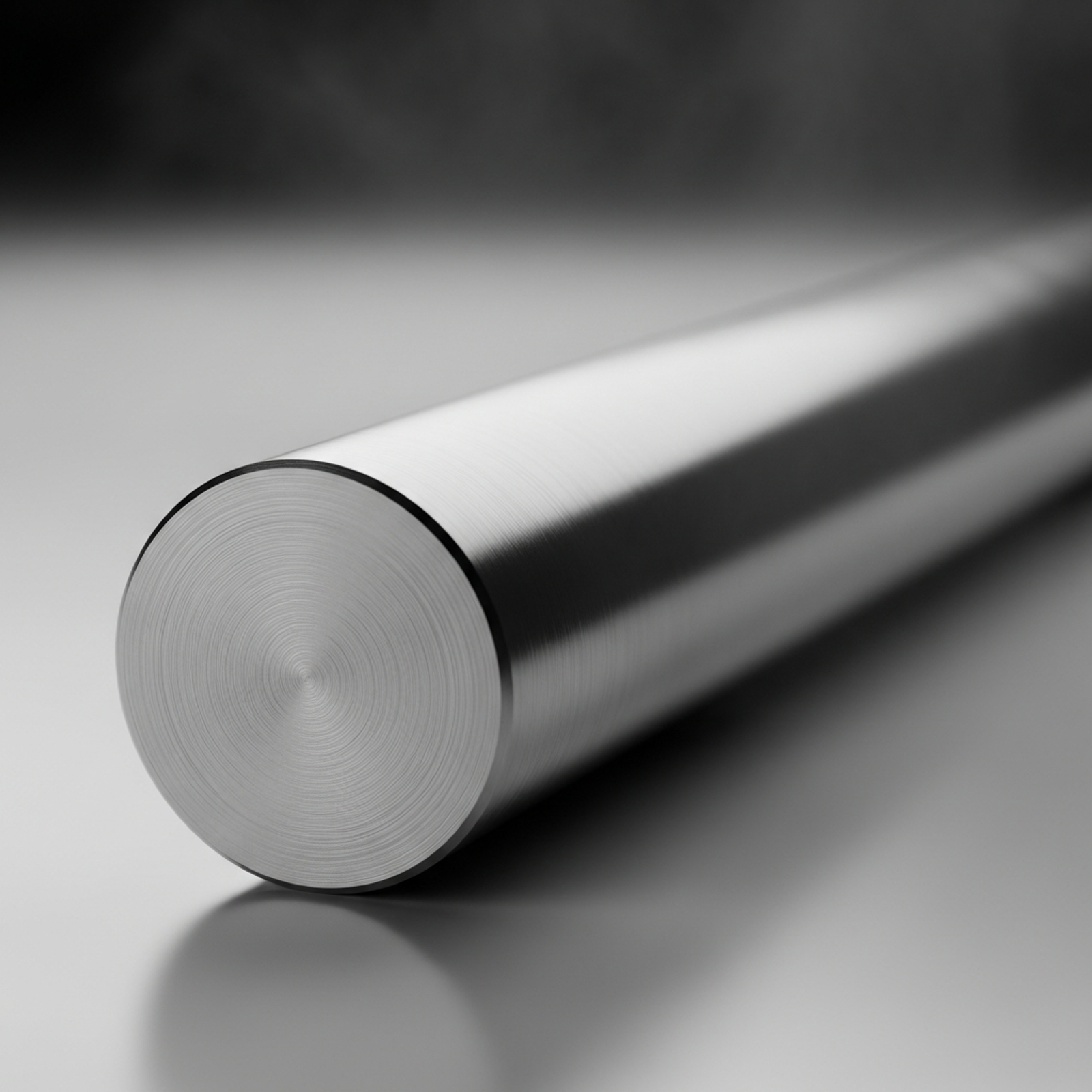

ทองแดงผสมแท่ง
ภาพรวม
C11000, also known as Electrolytic Tough Pitch Copper (ETP), is the most widely used and commercially important grade of pure copper. Designated under the UNS (Unified Numbering System), C11000 is recognized globally as the standard workhorse grade for electrical, thermal, and general-purpose applications.
คำอธิบาย (อังกฤษ)
C11000 (ETP Copper) is the most widely specified pure copper grade, offering an optimal balance of excellent electrical and thermal conductivity, good formability, reasonable corrosion resistance, and cost-effectiveness. It is the benchmark material for electrical conductivity and serves as the foundation for countless applications across electrical, electronic, thermal, architectural, and industrial sectors.
ช่วงขนาด
- Up to Φ300 mm+
- Length:2 m / 2.5 m / 3 m
- Surface Finish:Drawn, turned, ground (high-precision tolerance ±0.01 mm)
- Product form:Hot-rolled bar, cold-drawn bar, ground/polished bar, forged bar
ข้อกำหนดเกรด
| ระบบ | ค่า |
|---|---|
| 🇺🇸 UNS | C11000 |
| 🇺🇸 ASTM | B152 (sheet/plate/strip), B187 (rod/bar), B3 (wire), B49 (electrical rod) |
องค์ประกอบทางเคมี
| ธาตุ | ค่า |
|---|---|
| Cu | 99.90min |
คุณสมบัติเชิงกล
| productCenter.property | ค่า |
|---|---|
| Soft / Annealed (O60)Tensile Strength Rm (MPa) | 200–250 |
| Soft / Annealed (O60)Yield Strength Rp0.2 (MPa) | 30–70 |
| Soft / Annealed (O60)Elongation A (%) | 35–55 |
| Soft / Annealed (O60)Hardness | HB 35–45 |
| 1/4 Hard (H01)Tensile Strength Rm (MPa) | 235–290 |
| 1/4 Hard (H01)Yield Strength Rp0.2 (MPa) | 180–220 |
| 1/4 Hard (H01)Elongation A (%) | ≥ 20 |
| 1/4 Hard (H01)Hardness | HB 60–80 |
คุณสมบัติทางกายภาพ
| คุณสมบัติ | หน่วย | ค่า |
|---|---|---|
| DIN / Germany | - | E-Cu58 (2.0065) |
| JIS / Japan | - | C1100 |
| GB / China | - | T2 (GB/T 5231) |
| BS / UK | - | C101 / C102 |
การใช้งาน
- Electrical / Power:Busbars, electrodes, terminals, conductive posts
- Electronics / Thermal:Heat sinks, thermal blocks, refrigeration components
- Mechanical / Structural:Valves, mold inserts, welded structural parts
- Chemical / Corrosion:Process piping, corrosion-resistant fittings
- Wire Drawing:Feedstock for wire drawing, cable conductors
