Descripción General

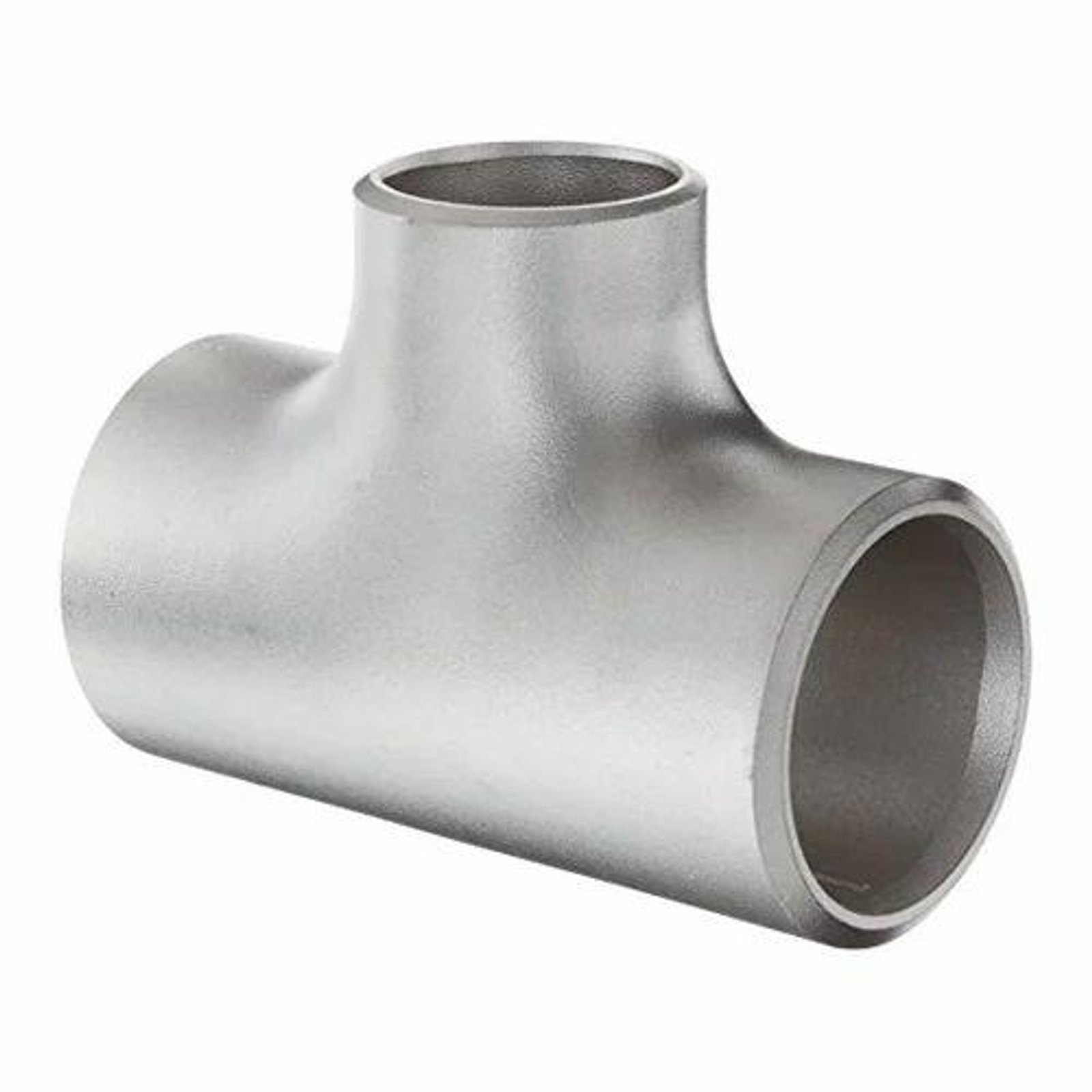

Titanium Grade 2 tees are butt-weld pipe fittings used to create T-shaped branches in piping systems, allowing flow to be split or combined. They are manufactured from commercially pure titanium (Grade 2), offering the same exceptional corrosion resistance as Ti Gr.2 pipe — particularly immunity to seawater, chloride solutions, and oxidizing acids.
Descripción (Inglés)
Titanium Grade 2 tees are butt-weld pipe fittings used to create T-shaped branches in piping systems, allowing flow to be split or combined. They are manufactured from commercially pure titanium (Grade 2), offering the same exceptional corrosion resistance as Ti Gr.2 pipe — particularly immunity to seawater, chloride solutions, and oxidizing acids.
Rango de Tamaño
- Equal Tee NPS Range: 1/2" – 24" (DN15 – DN600)
- Reducing Tee NPS Range:1/2" – 24" (branch sizes from 1/2" up to 2 sizes smaller than run)
- Schedule / Wall Thickness:Sch 5S – Sch 80S (or custom)
- Pressure Class:Class 150 – 2500 (by wall schedule)
Especificación de Grado
| Sistema | Valor |
|---|---|
| 🇺🇸 UNS | R50400 |
| 🇺🇸 ASTM | Grade 2 (ASTM B363 WP-Gr.2, B381 F Gr.2) |
| 🇺🇸 ASME | SB363 WP-Gr.2 |
| EN/DIN | Grade 2 / 3.7035 |
| 🇯🇵 JIS | TP340H (Class 2) |
| 🇨🇳 GB | TA2 (GB/T 27684) |
Aplicaciones
- Chemical Processing
- Desalination
- Power Generation
- Oil & Gas Offshore
- Marine
- Pulp & Paper
- Pharmaceutical
- Food & Beverage
- Cryogenic
