Descripción General
HASTELLOY Alloy N (UNS N10003) is a nickel-molybdenum-chromium superalloy containing Ni bal, Cr 7, Mo 16.5, and Fe 5 max, specifically designed for resistance to high-temperature fluoride salts and fused salt environments. The low chromium and high molybdenum composition provides excellent resistance to fluoride salt corrosion and thermal stress. The alloy is widely used in nuclear power applications, particularly for molten salt reactors, fluoride salt processing equipment, and high-temperature chemical process systems where conventional Ni-Cr-Mo alloys are not suitable.
Descripción (Inglés)
HASTELLOY Alloy N is supplied in the sheet solution heat-treated condition, delivering yield strength of 310 MPa, tensile strength of 793 MPa, elongation of 51%, and hardness of HRB 96. The alloy is manufactured to multiple ASTM standards covering sheet/plate (B 434), rod (B 573), and fittings (B 366). The good ductility (51%) combined with high molybdenum content provides excellent resistance to fluoride salt corrosion. HASTELLOY N is widely used in nuclear power generation, fluoride salt processing, and high-temperature molten salt applications.
Rango de Tamaño

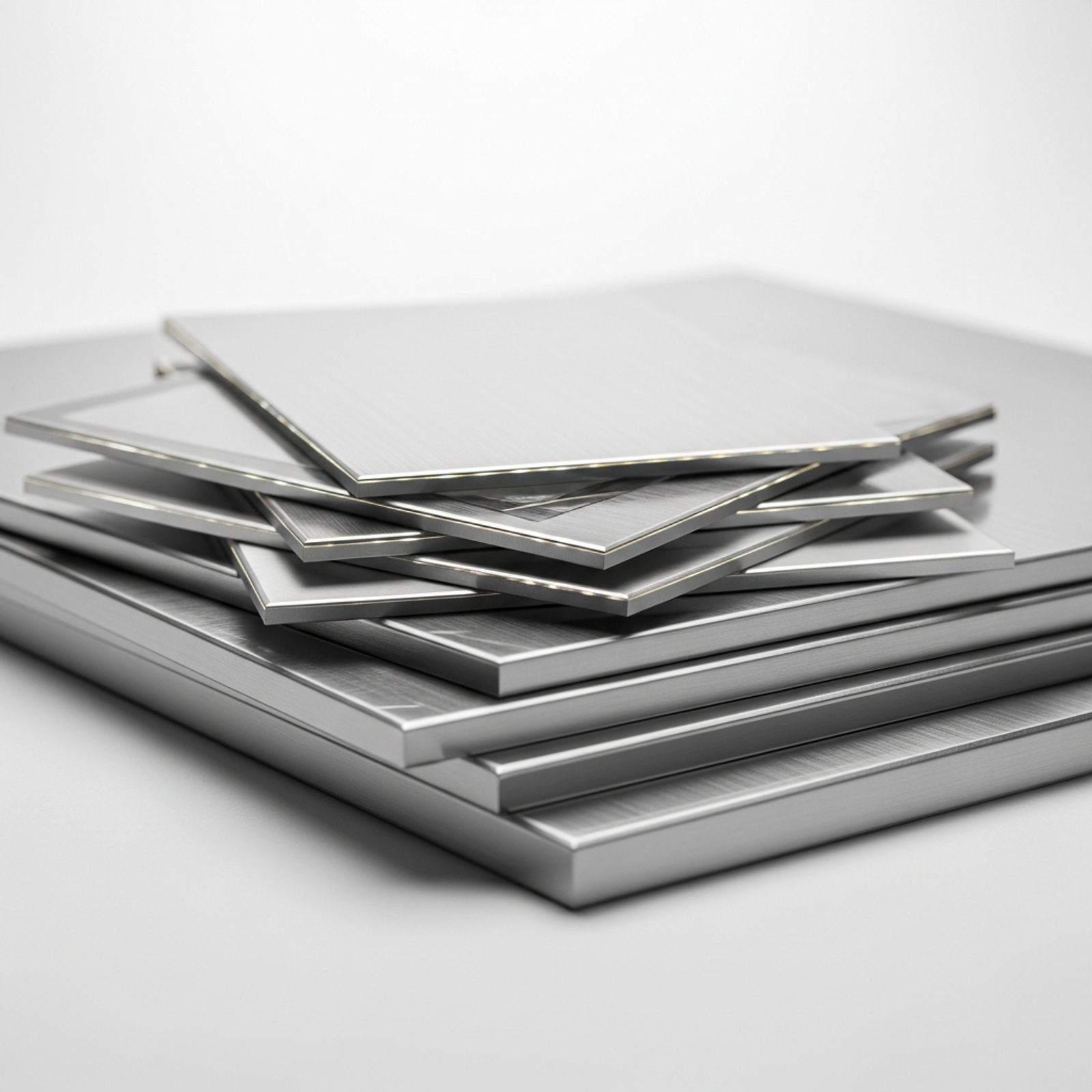

- Sheet: 0.5 - 6 mm thickness, Width up to 1200 mm, Length up to 3000 mm
- Plate: 6 - 50 mm thickness, Width up to 1500 mm, Length up to 3000 mm
- Strip: 0.1 - 3 mm thickness, Width up to 300 mm, Coil
Especificación de Grado
| Sistema | Valor |
|---|---|
| 🇺🇸 UNS | N10003 |
| 🇪🇺 EN | NiMo16Cr7Fe |
| 🇩🇪 DIN | 2.4650 |
Composición Química
| Elemento | Valor |
|---|---|
| Ni | bal |
| Cr | 7 |
| Mo | 16.5 |
| Fe | 5max |
| Mn | 0.8max |
| Si | 1max |
| Al+Ti | 0.5 max |
| W | 0.5max |
| Cu | 0.35max |
| Co | 0.2max |
| B | 0.01max |
| C | 0.06 |
Propiedades Mecánicas
| productCenter.property | Valor |
|---|---|
| Yield Strength (0.2% offset) | 310 MPa |
| Tensile Strength | 793 MPa |
| Elongation (in 2 in) | 51% |
| Hardness | HRB 96 |
Propiedades Físicas
| Propiedad | Unidad | Valor |
|---|---|---|
| Density | g/cm³ | 0.320 lb/cu in |
| Melting Point | °C | 2515 °F |
| Specific Heat (32-212°F) | J/kg·K | 0.099 Btu/lb/°F |
| Thermal Expansion Coefficient (32-212°F) | ×10⁻⁶/K | 6.4 in/in/°F × 10⁻⁶ |
| Thermal Conductivity (32-212°F) | W/m·K | 78 Btu/sq ft/hr/°F/in |
| Electrical Resistivity (68°F) | μΩ·cm | 730 ohms/cir mil ft |
Aplicaciones
- - Nuclear power generation
- - Molten salt reactors (MSR)
- - Fluoride salt processing equipment
- - High-temperature chemical process systems
- - Heat exchangers in nuclear applications
- - Reactor components
- - High-temperature molten salt containers
