Alloy SteelSheet/Plate
Overview

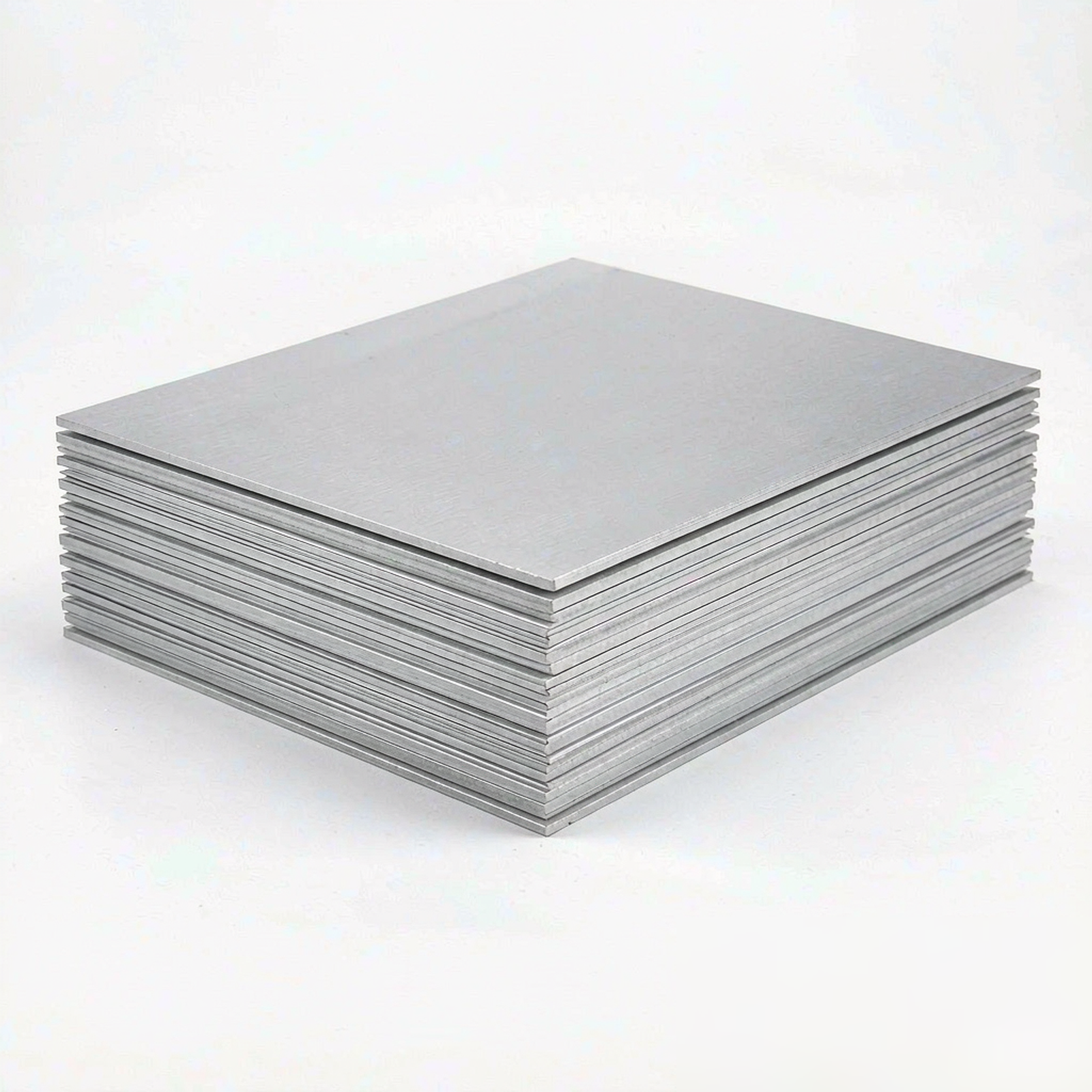

Ti Code 12, also known as Titanium Grade 12 and UNS R53400, is a lightly alloyed near-alpha titanium alloy containing nickel and molybdenum. It offers improved strength and temperature capability compared with commercially pure titanium, together with excellent resistance to crevice corrosion. Shanghai Vertex Alloy Co., Ltd. supplies Ti Code 12 titanium alloy sheet, strip, and plate according to ASTM B265 and customer requirements.
Size Range
- Custom dimensions and cut-to-size products are available subject to production requirements.
Grade Specification
| System | Value |
|---|---|
| Ti Code 12 | - |
Chemical Composition
| Element | Value |
|---|---|
| Ti | Bal |
| Ni | 0.8 |
| Mo | 0.3 |
| C | 0.08max |
| Fe | 0.30max |
| N | 0.03max |
| H | 0.015max |
| O | 0.25max |
Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength | 62 ksi / approx. 428 MPa |
| Tensile Strength | 82 ksi / approx. 565 MPa |
| Elongation | 20% |
| Hardness | Approx. 240 HB |
Applications
- Chemical processing equipment
- Heat exchangers
- Corrosion-resistant equipment
- Process piping systems
- Power generation equipment
- Marine and seawater applications
- Industrial components
