Carbon SteelPipe/Tube
Description (English)

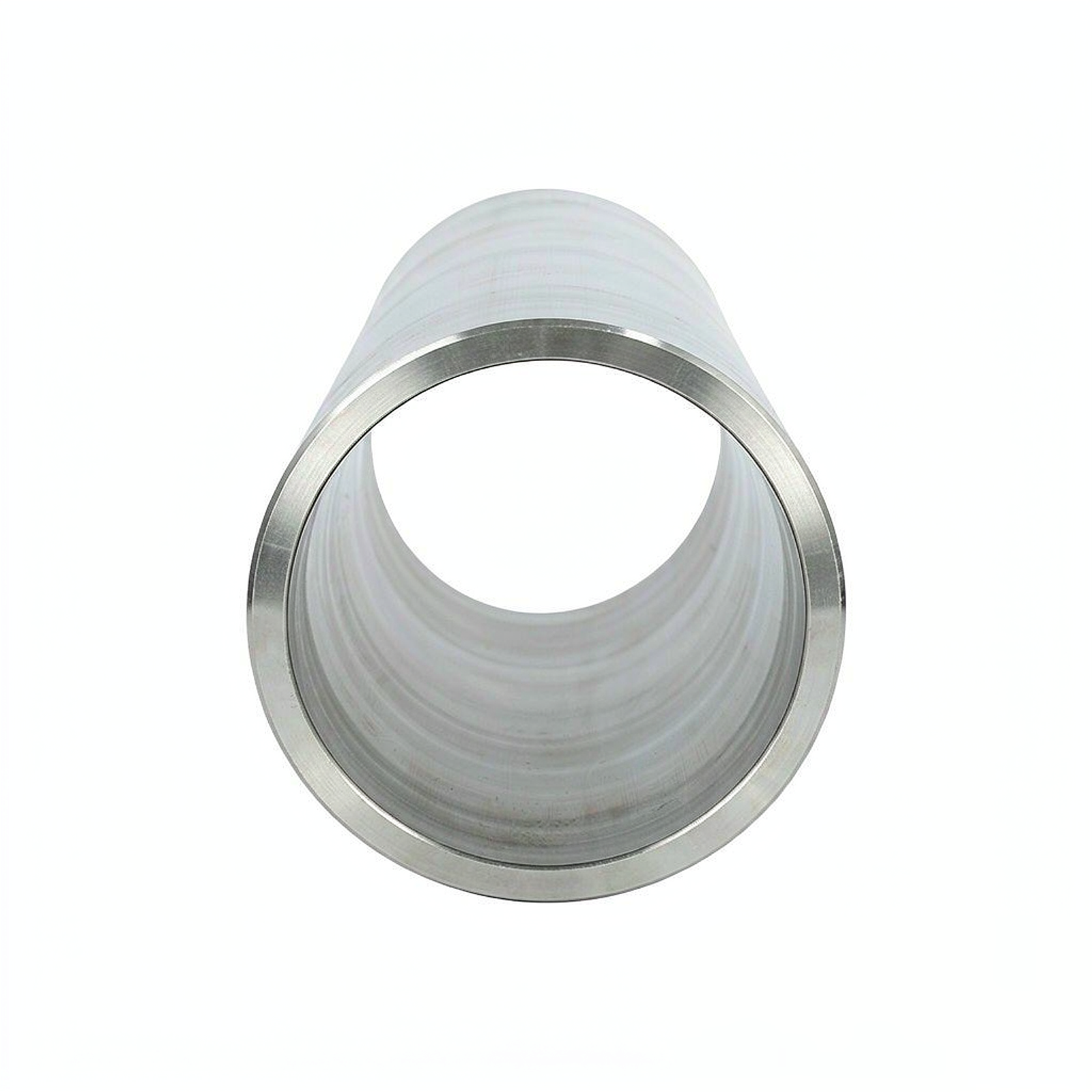

Shanghai Vertex Alloy Co., Ltd (Vertex Alloy) supplies SAE 1008 steel tube (AISI 1008 / UNS G10080, similar to Chinese GB 08 steel). SAE 1008 is an extra-low-carbon steel (≤ 0.10% C, 0.30–0.50% Mn per SAE J403) with outstanding weldability and superior cold formability, supplied as ERW round, square and rectangular mechanical tubing to ASTM A513. Available OD 6–219 mm with wall 0.5–10 mm in as-welded, cold drawn or annealed condition, in fixed lengths of 3–12 m with cut-to-length service and EN 10204 3.1 certificates. Typical applications include furniture frames, automotive exhaust and structural tubes, handrails and general mechanical tubing. Contact us for the latest stock and pricing.
Size Range
- OD 6–219 mm (1/4"–8")
- 3–12 m fixed length
Grade Specification
| System | Value |
|---|---|
| USA (SAE/AISI) | 1008 |
| 🇺🇸 UNS | G10080 |
| China (GB) | 08 steel |
| Japan (JIS) | SPCC / SPHC (sheet equivalents) |
| Germany (DIN) | 1.0204 |
| Typical Spec | ASTM A513 (ERW mechanical tubing) |
| Composition Spec | SAE J403 |
Chemical Composition
| Element | Value |
|---|---|
| C | ≤ 0.10 |
| Mn | 0.30–0.50 |
| P | ≤ 0.040 |
| S | ≤ 0.050 |
| Si | ≤ 0.10 (killed steel, typical) |
| Fe | Balance |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | ≈ 305 MPa |
| Yield Strength | ≈ 170 MPa |
| Elongation (50 mm) | ≥ 30% |
| Reduction of Area | ≈ 55% |
| Hardness | ≈ 86 HB |
| Machinability | ≈ 55% (AISI 1212 = 100%) |
Physical Properties
| Property | Unit | Value |
|---|---|---|
| Density | - | 7.87 g/cm³ |
| Melting Range | - | 1,430–1,470°C |
| Elastic Modulus | - | 190–210 GPa |
| Thermal Conductivity | - | ≈ 60 W/(m·K) |
| CTE (20–100°C) | - | 12.6 × 10⁻⁶ /K |
| Specific Heat | - | ≈ 480 J/(kg·K) |
| Electrical Resistivity | - | ≈ 130 nΩ·m (20°C) |
Applications
- Automotive:Exhaust system tubes;Seat frames, structural tubes
- Furniture:Chair and table frames;Tube legs, bed frames
- Construction: Handrails, guardrails；Scaffolding tubes
- General Engineering：Machine frames, bushings
- Bicycle / E-mobility：Frame tubes, fork tubes
- HVAC：Ventilation ducting, condenser tubes
- Hardware：Tubular handles, display racks, shelves
