Overview
Copper C11000 wire is a copper alloy special-form. Relevant grade or standard references include UNS C11000; ASTM B2,B3,B4; EN/DIN 2.0065 / E-Cu58; JIS C1100 / JIS C 3102; GB T2 โ GB/T 3953 (electrical round copper wire). Typical applications include Power Distribution:Building wire, power cables, service entrance conductors; Electronics:Hook-up wire, lead wires, PCB jumper wires, coil winding; Motors & Transformers:Enameled magnet wire, winding wire; Grounding:Ground wire, lightning protection, earth electrodes. Available size information includes 0.02-25mm; Product form: Spools, reels, coils, cut-to-length straight rods.
Description (English)

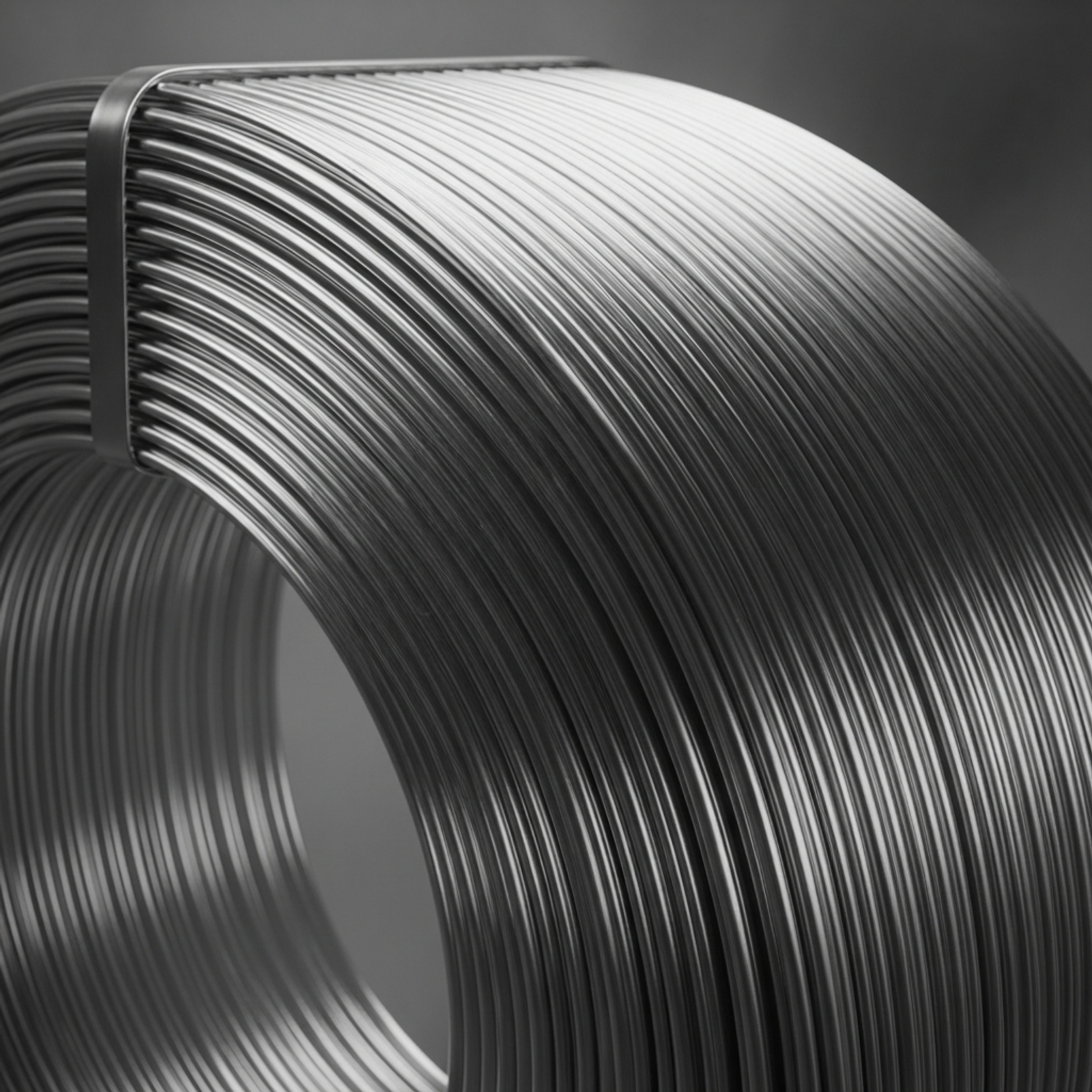

C11000 copper wire (also called ETP copper wire) is the most widely used pure copper wire product, produced by drawing C11000 (Electrolytic Tough Pitch) copper rod through progressive dies to achieve precise diameters and mechanical properties.
Size Range
- 0.02-25mm
- Product form: Spools, reels, coils, cut-to-length straight rods
Grade Specification
| System | Value |
|---|---|
| ๐บ๐ธ UNS | C11000 |
| ๐บ๐ธ ASTM | B2,B3,B4 |
| EN/DIN | 2.0065 / E-Cu58 |
| ๐ฏ๐ต JIS | C1100 / JIS C 3102 |
| ๐จ๐ณ GB | T2 โ GB/T 3953 (electrical round copper wire) |
Chemical Composition
| Element | Value |
|---|---|
| Cu | 99.90min |
Mechanical Properties
| productCenter.property | Value |
|---|---|
| dia.0.02 โ 0.12mm | tensile strength 205-260Mpa;Elongation% 15-20 |
| dia0.12-0.50 | tensile strength 205-260Mpa;Elongation% 20-30 |
| dia.0.50-1.50mm | tensile strength 205-260Mpa;Elongation% 25-35 |
| 1.50-5.0mm | tensile strength 205-260Mpa;Elongation% 30-40 |
| 5mm+ | tensile strength 205-260Mpa;Elongation% 35-45 |
Applications
- Power Distribution:Building wire, power cables, service entrance conductors
- Electronics:Hook-up wire, lead wires, PCB jumper wires, coil winding
- Motors & Transformers:Enameled magnet wire, winding wire
- Grounding:Ground wire, lightning protection, earth electrodes
- Telecommunications:Telephone wire, data cable conductors
- Automotive:Wiring harnesses, battery cables
- Appliances:Internal wiring, heating elements (alloyed)
- Craft / Jewelry:Wire wrapping, jewelry making
