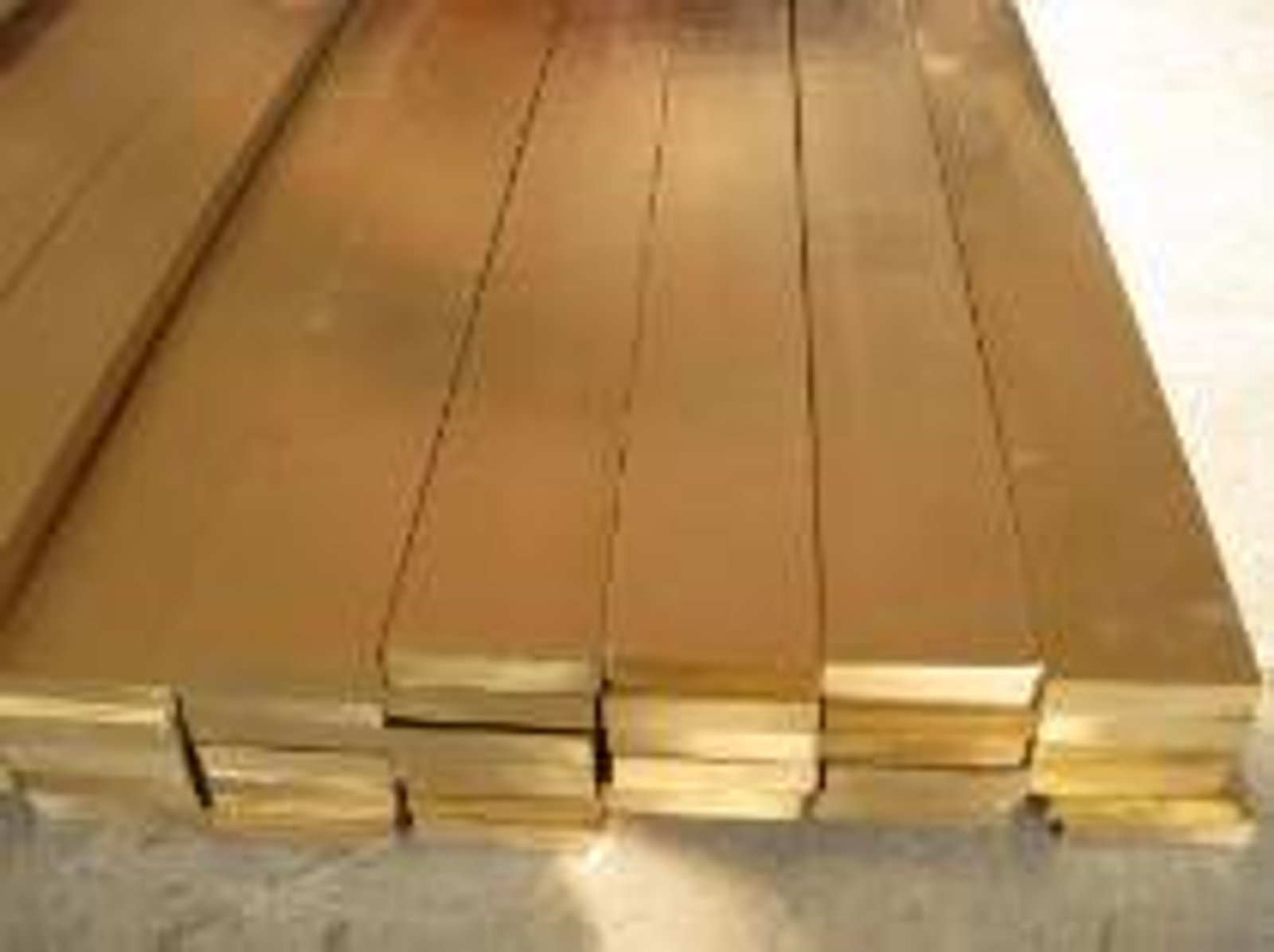

C26000 Brass Sheet (H63 / CuZn37 / CW505L)

Copper AlloySheet/Plate
C26000 Brass Sheet (H63 / CuZn37 / CW505L)
1/3

Description (English)

zinc alloy manufactured to ASTM B36, EN 1652, and GB/T 2041 standards. copper content 63%, zinc content 35%. Size available: standard width is about 600-1200mm,or customization. Supplied in a range of tempers (O60 to H10) with consistent mechanical properties and excellent dimensional tolerance, it is suitable for precision stamping, deep drawing, and high-volume sheet metal fabrication across electrical, automotive, and decorative applications.

Size Range

  • Thickness: 0.1mm – 50mm (custom available)
  • Width: Up to 1200mm
  • Length: Up to 3000mm or coil
  • Tolerance: Β±0.01mm to Β±0.1mm (depending on thickness)

Chemical Composition

ElementValue
Cu68.5 – 71.5
Zn28.5 – 31.5
Pb≀ 0.07
Fe≀ 0.05
Other Elements (Each)≀ 0.02
Other Elements (Total)≀ 0.10

Mechanical Properties

PropertyValue
O60 / OTensile Strength (MPa)300 – 380,Yield Strength (MPa)≀ 130,Elongation (%)β‰₯ 50,Hardness (HV)50 – 80
H01 / 1/4HTensile Strength (MPa)340 – 420,Yield Strength (MPa)130 – 200,Elongation (%)β‰₯ 40,Hardness (HV)70 – 100
H02 / 1/2HTensile Strength (MPa)380 – 460,Yield Strength (MPa)200 – 280,Elongation (%)β‰₯ 30,Hardness (HV)90 – 120
H04 / HTensile Strength (MPa)460 – 540,Yield Strength (MPa)280 – 380,Elongation (%)β‰₯ 15,Hardness (HV)110 – 140

Physical Properties

PropertyUnitValue
Density-8.53g/cmΒ³

Applications

  • Ammunition cartridge cases and primers
  • Electrical terminals, connectors, and switch components
  • Decorative trims, panels, and architectural hardware
  • Plumbing fittings, valves, and bathroom fixtures
  • Heat exchanger fins and radiator components
  • Automotive radiator cores and grilles
  • Musical instruments and acoustic components
  • Clock dials, gauges, and instrument panels
  • Stamped parts, drawn shells, and deep-drawn components
  • Gold-colored decorative finishes and imitation gold leaf
  • Pins, fasteners, and rivets
  • Reflectors, nameplates, and signage
